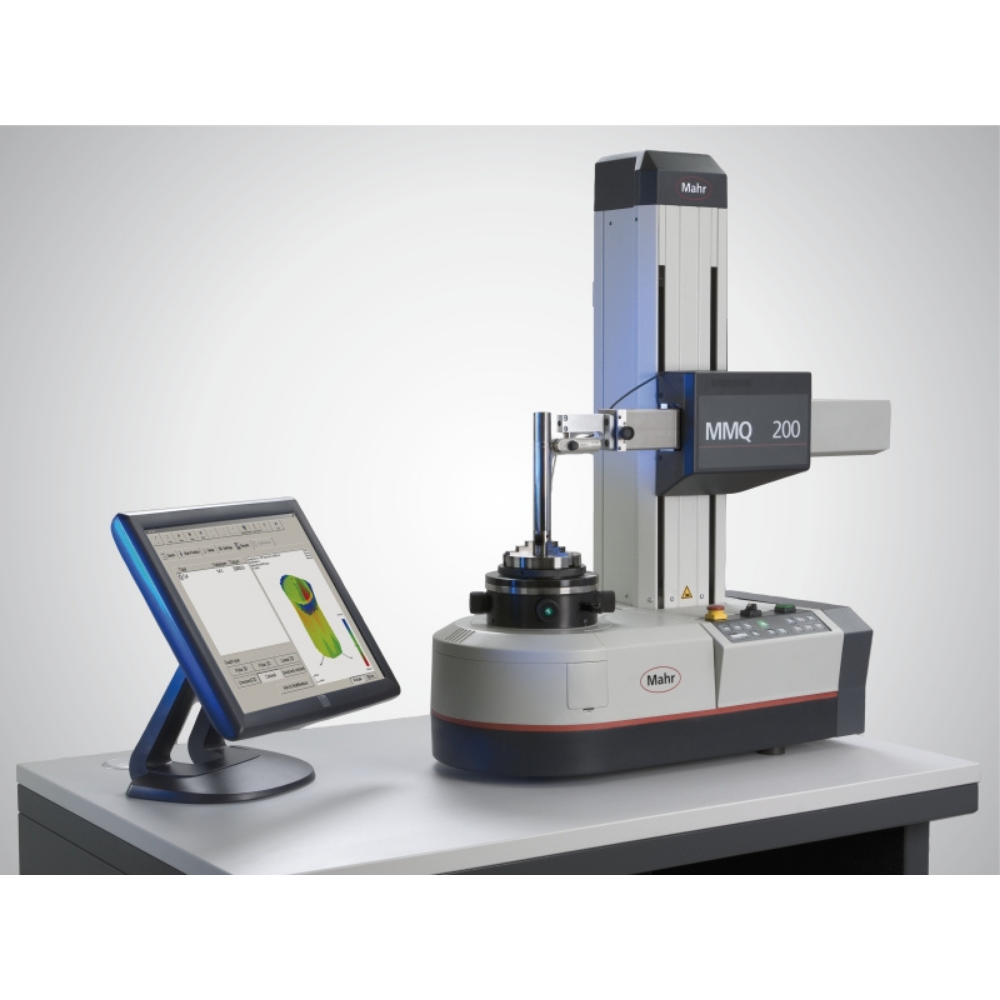

(EN) The MarForm MMQ 200 is available in two versions: As a measuring station with the universal measuring probe T20W and as a measuring station with the motorized measuring probe T7W, which takes automation another step forward with its unique motorization.
The MMQ 200 is operated with the EasyForm software. It is controlled by means of touchscreen technology, which also makes operation with the mouse exceptionally easy.
Technical Data
|
Roundness deviation (µm+µm/mm measuring height) *
|
0,015 + 0,0003
|
|---|---|
|
Roundness deviation (µm+µm/mm measuring height) **
|
0,03 + 0,0006
|
|
Axial runout deviation (µm+µm/mm measuring radius) *
|
0,02 + 0,0001
|
|
Axial runout deviation (µm+µm/mm measuring radius) **
|
0,04 + 0,0006
|
|
Centering and tilting table
|
manual
|
|
Table diameter (mm)
|
160
|
|
Table load capacity, centered (N)
|
200
|
|
Speed (rpm) 50 Hz / 60 Hz
|
0.2-15
|
|
Measuring path, motorized Z (mm)
|
250
|
|
Straightness deviation / 100 mm measuring path (µm)**, Z axis
|
0.15
|
|
Straightness deviation / total measuring path (µm)**, Z axis
|
0.3
|
|
Parallelism deviation Z-/C axis in tracing direction, measuring path (µm)
|
0.5
|
|
Measuring speed (mm/s), Z axis
|
0.5-30
|
|
Positioning speed (mm/s), Z axis
|
0,5-100
|
|
Positioning path (mm), X axis
|
150, motorized
|
|
Positioning speed (mm/s), X axis
|
0,5-30
|
|
Footer text
|
* Values as maximum deviation from LSC reference circle, filter 15 undulations/revolution.
** All values in accordance with DIN ISO 1101 at 20°C ±1°C in a vibration-neutral environment, filter 15 undulations/revolution LSC or 2.5 mm LSS, 5 rpm or 5 mm/s and standard probe arm with ball diameter 3 mm. Proof at the standard using error separation techniques. Given the number of different options available, only a few machines are described here by way of example. Technical data for “your” MMQ is available from Mahr on request. |
Versions
Form measuring station with T20W
- MarForm MMQ 200 form tester
- T20W length measuring probe, manual, with probe arm
- EasyForm measuring and operating software
- Intel-class PC, Windows 10
- 24″ TFT monitor
- Rim chuck Ø 100 mm
Form measuring station with T7W
- MarForm MMQ 200 form tester
- T7W length measuring probe with probe arm
- EasyForm measuring and operating software
- Intel-class PC, Windows 10
- 24″ TFT monitor
- Rim chuck Ø 100 mm
