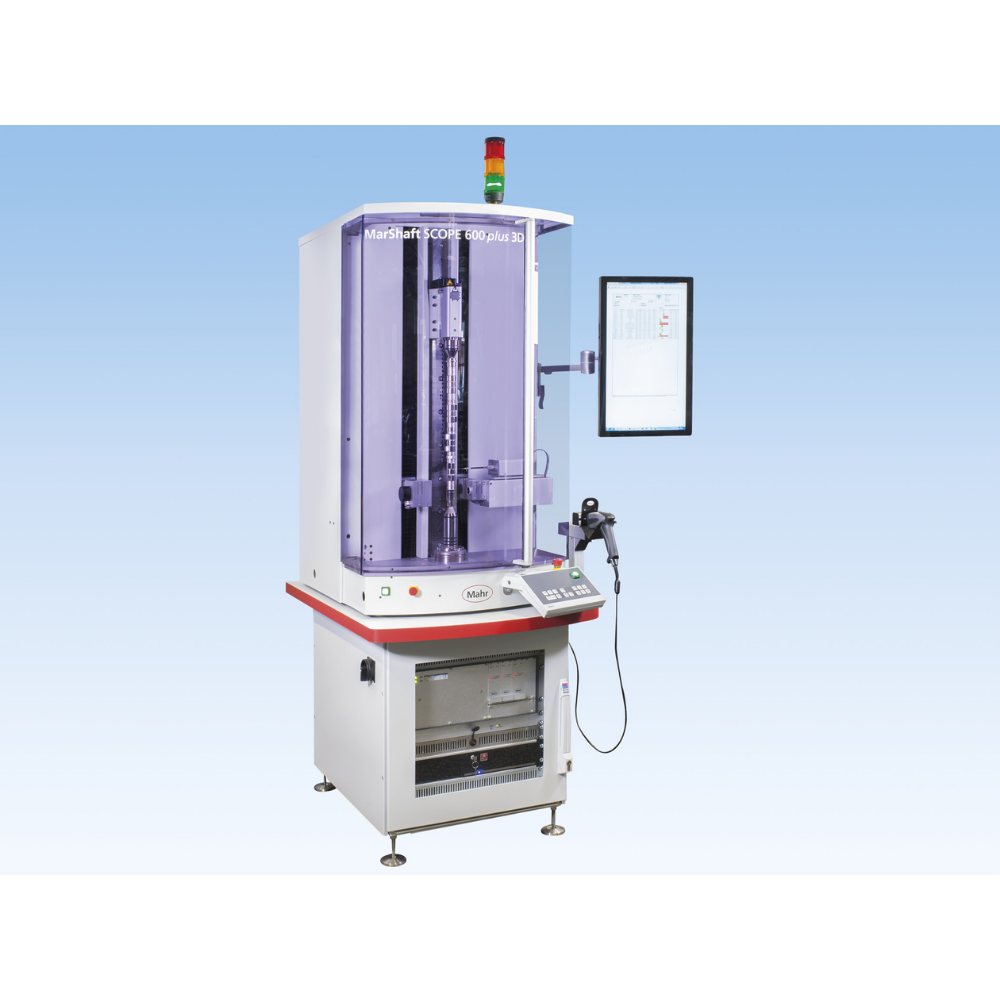

Performance features at a glance:
- Complete measurement of camshafts, including the cam angle and all standard cam contours

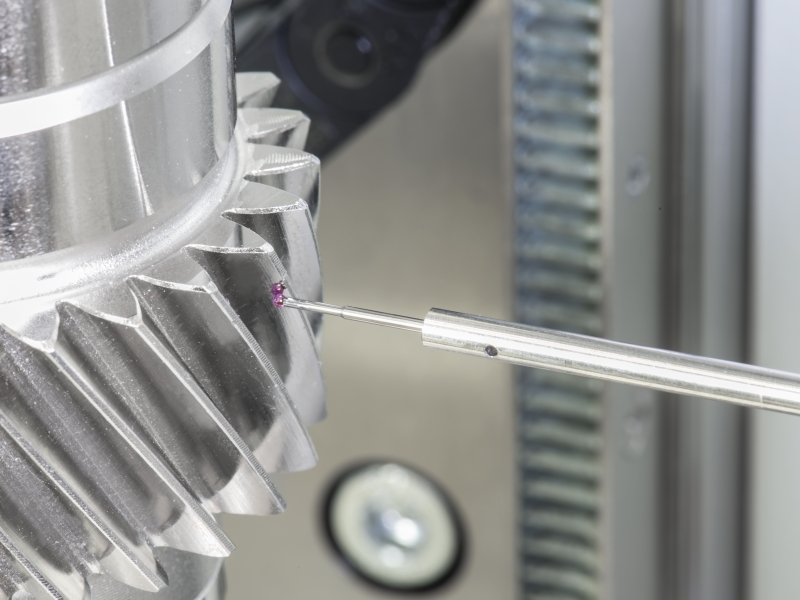

- Measurement of the gears on cylindrical gears
- Measurement of contour elements
- Drive pins not used
- Direct measurement of references (e.g. 2-flat or feather key groove)
- Measurement of feather key grooves
- Measurement of blind holes

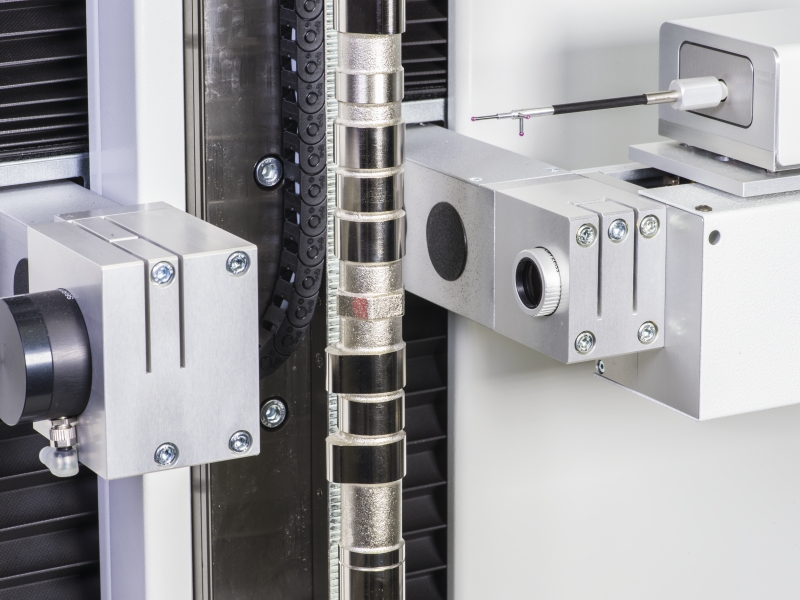

- 100% 3D function using new 2D probe
- Additional Y measurement axis
- Special calibration of linear axes (Z-X-Y)
- MarShaft Professional
- Manual control panel
Technical data
|
Diameter error limit (X) (µm)
|
(1.0 + L/125) L in mm (at 20°C ± 1°C on reference standard)
|
|---|---|
|
Drives
|
Servo motors
|
|
Lens
|
Telecentric precision lens
High-resolution CCD array |
|
Length error limit (Z) (µm)
|
(2 + L/125) L in mm (at 20°C ± 1°C on reference standard)
|
|
Angle resolution (°)
|
0.01 to 0.0001
|
|
Measuring range diameter (X) (mm)
|
120
|
|
Workpiece weight (max.) in kg (text)
|
15
|
|
Length/diameter resolution (mm)
|
0.01 to 0.0001
|
|
Measuring range length (Z) (mm)
|
600
|
Applications
- Complete measurement of camshafts
- Complete measurement of gear shafts
Typical workpieces
- Camshaft
- Gear shafts
- Eccentric shafts
- Shafts with keyways or blind boreholes
