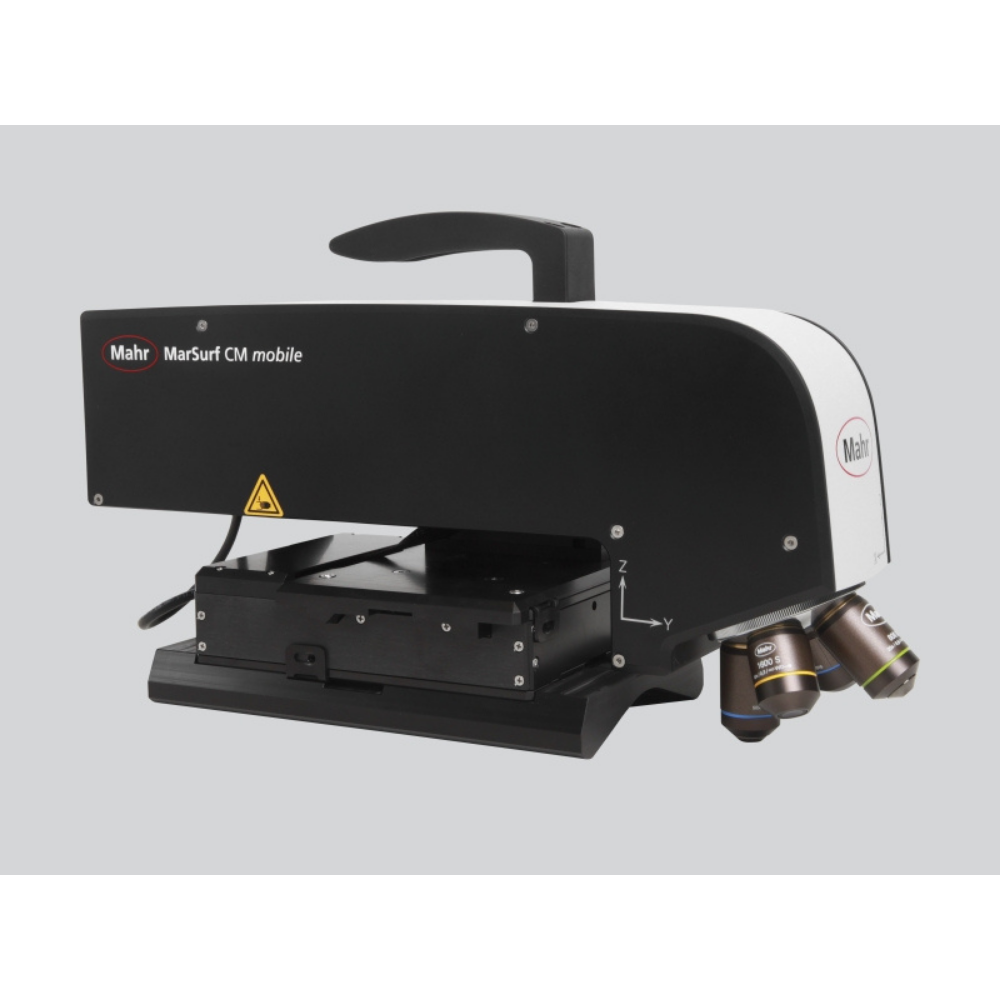

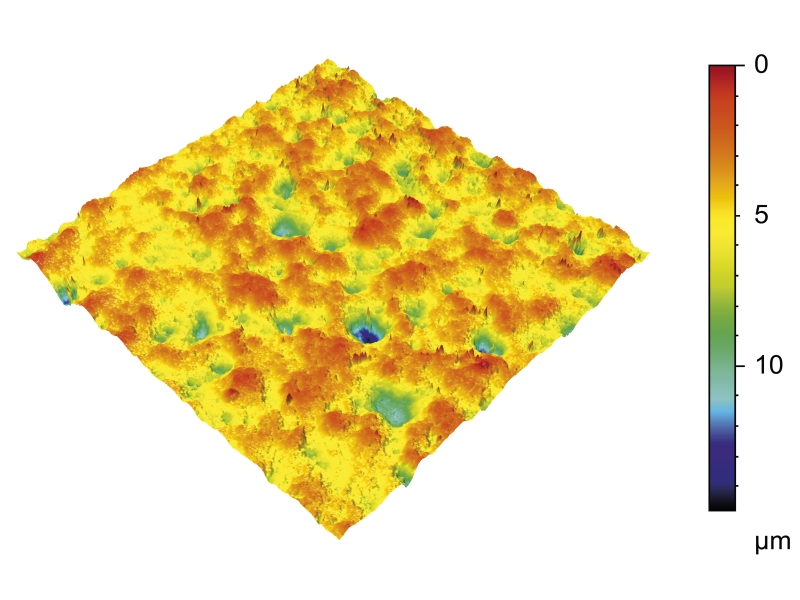

The compact MarSurf CM mobile is a portable confocal microscope for the three-dimensional measurement and analysis of surfaces – contactless, independent of material, and fast.
Uzdot jautājumuTechnical Data
|
Resolution
|
up to 2 (nm) vertical
|
|---|---|
|
Measuring speed
|
up to 100fps
|
|
Measuring principle
|
Confocal
High-performance LED (505 nm) |
|
Power supplied
|
100 – 240 V
|
|
Surface parameters
|
ISO 4287, ISO 13565, ISO 25178, …
|
|
Positioning volume x
|
50 mm
|
|
Positioning volume y
|
50 mm
|
|
Positioning volume z
|
35 mm
|
Applications
Machine building
- Qualification and quantification of the roughness, geometry, and wear volume
Tool technology
- Component inspection right in to sub-micrometer range for fault-free products
Medical technology
- Quality assurance of medical surfaces in production and the laboratory
Materials science
- Optimization of functional features on new surfaces and products
Micro-system technology
- Measurement of complex surface geometries of the smallest components with nanometer precision
Shipment
MarSurf CM mobile
- Confocal measuring head
- B/W or Colour camera
- 4x lens revolver
- Control electronics integrated in the system
- Motorized XY table (50×50 mm) with glass scales for positioning and image field merging (“stitching”)
- Motorized Z-axis (35 mm)
- Laptop or measuring system computer with 24″ TFT monitor selectable
- Objective lenses:
- 5x to 100x selectable
- MarSurf MSW for intuitive data acquisition
- MarSurf for professional evaluation, graphical representation and creation of measuring records
- (choice of Standard, Extended or Premium version)
