Technical Data
|
|

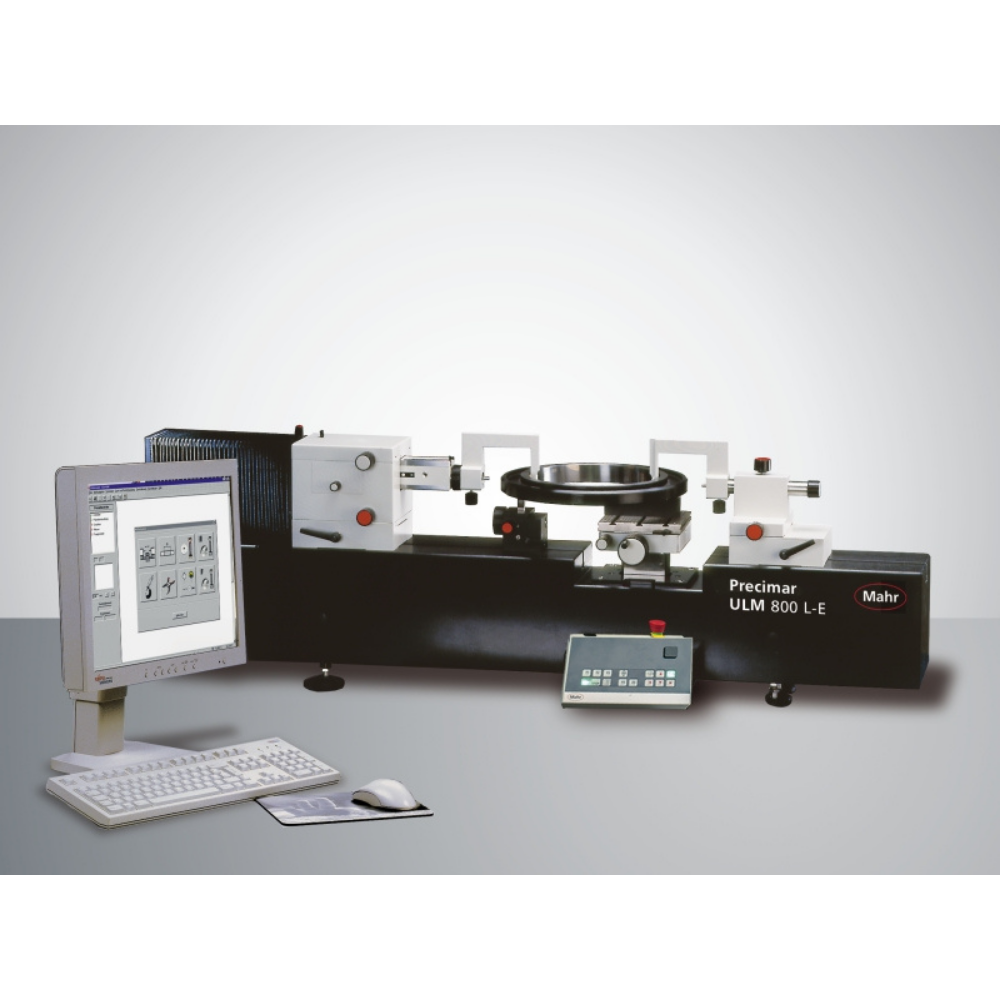

ULM 800 L-E
|
ULM 1500 L-E
|
|---|---|---|
|
Device dimensions
|
1500 x 380 x 480
|
2300 x 380 x 480
|
|
Measuring range for outer measurement [mm]
|
0 to 830
|
0 to 1620
|
|
Measuring range for inner measurement [mm]
|
0.5 to 670
|
0.5 to 1465
|
|
Direct measuring range [mm]
|
0 to 525
|
0 to 1115
|
|
Measuring uncertainty MPEE1 (L in mm) [µm]
|
≤ (0,1+L/2000)
|
≤ (0,1+L/2000)
|
|
Measuring forces [N]
|
0.2 ; 1.0 to 4.5 ; 11
|
0.2 ; 1.0 to 4.5 ; 11
|
|
Repeatability [µm]
|
≤ 0,05
|
≤ 0,05
|
|
Device length [mm]
|
1500
|
2300
|
|
Mass [kg]
|
220
|
325
|
Applications
Accessories
- Large number of accessory kits and modular components for completing a wide variety of measuring tasks, including the measurement of:
- Thread gages
- Taper gages
- Conical thread gages
- Gears
- Factory calibration or DAkkS/DKD calibration can be additionally offered for this measuring station
