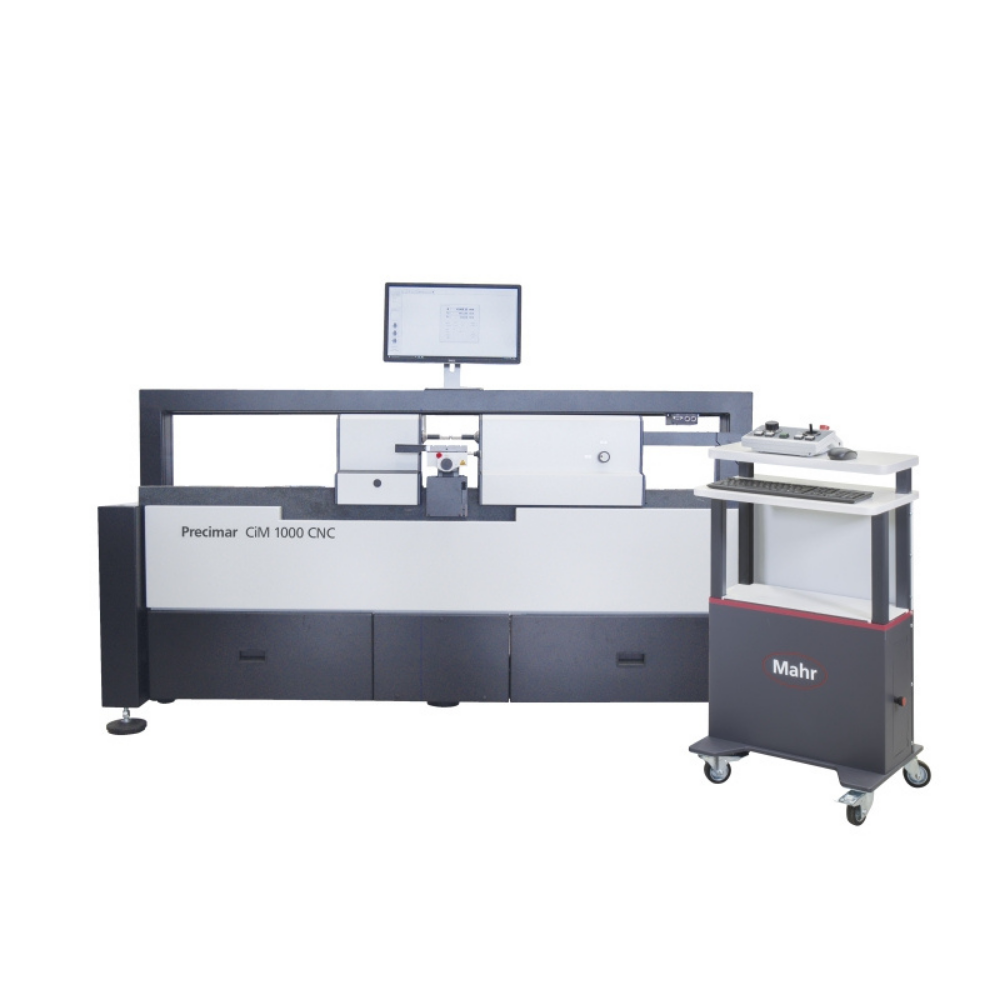

(EN) The Precimar CiM 1000 CNC precision length measuring machine is an Abbe-compliant comparator with horizontal base bed (highly homogeneous, rigid granite)
Uzdot jautājumuTechnical Data
|
Measuring range for outer measurement [mm]
|
0 to 1000
|
|---|---|
|
Measuring range for inner measurement [mm]
|
0.5 to 845
|
|
Direct measuring range [mm]
|
300
|
|
Position deviation / error limit (L in mm) [µm] *
|
≤ (0.04+ L/2000)
|
|
Measuring uncertainty MPEE1 (L in mm) [µm]
|
≤ (0.055 + L/1500)
|
|
Measuring forces [N]
|
0 to 13.9
|
|
Repeatability [µm]
|
≤ 0,03
|
|
Contacting speed with joystick (max)
|
8 mm/s
|
|
Device length [mm]
|
2500
|
|
Mass [kg]
|
840
|
|
Table surface (A x B) mm
|
150 x 350
|
Applications
Calibration of:

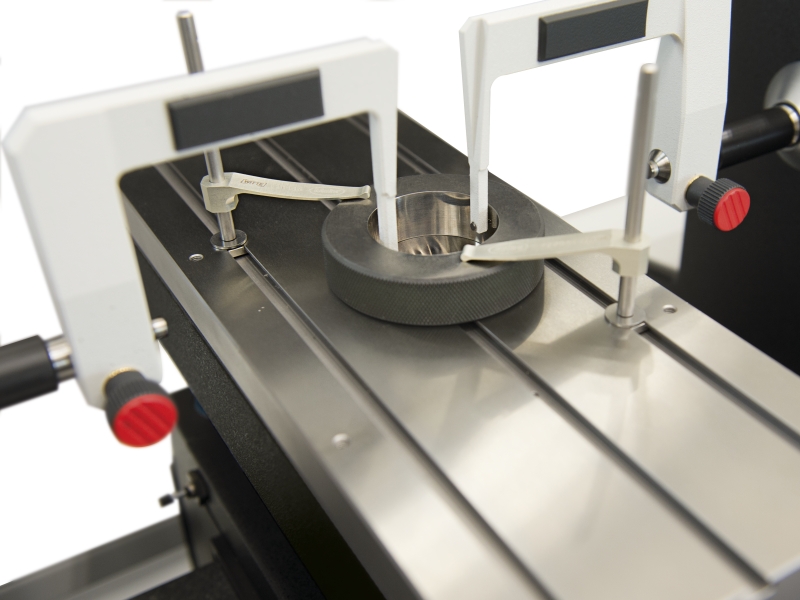

- Plain plug gages and gage rings
- Setting gage rings
- Snap gages
- Spherical gage blocks, internal micrometers
- Gage blocks
- Thread gages
- Taper thread gages
- Gear gages
- Dial indicators
- Dial comparators
- 2-point bore gages
- Outside micrometers
- 2-point inside micrometers
- Precision length measurement
- Measurement of thin-walled and deformed workpieces
Accessories
- Large number of accessory kits and modular components for completing a wide variety of measuring tasks, including the measurement of:
- Thread gages
- Conical thread gages
- Gears
- Thread pitches
- Factory calibration or DAkkS/DKD calibration can be additionally offered for this measuring station
